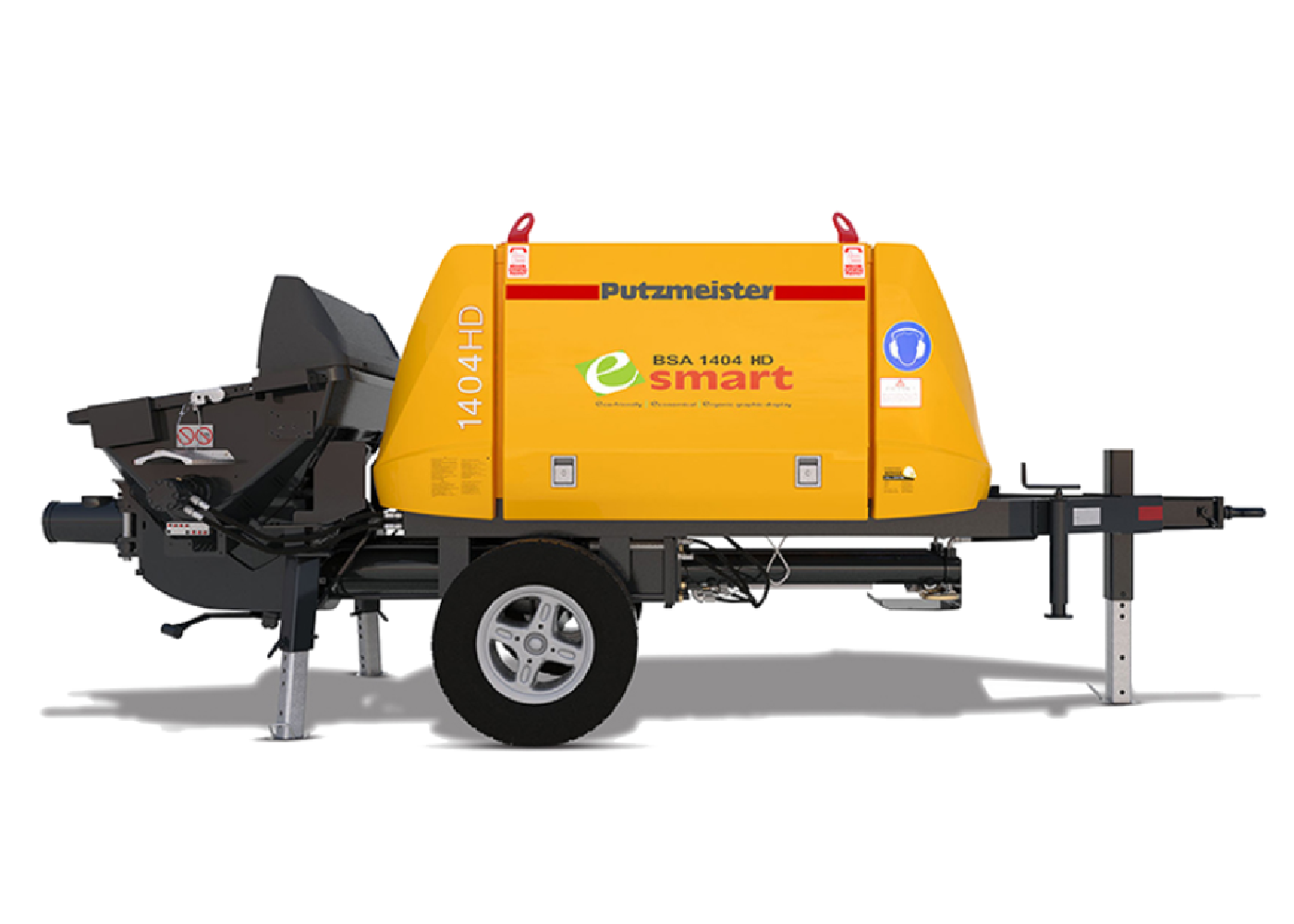

PUTZ BSA 1404 HD eSmart

Specifications for PUTZ BSA 1404 HD eSmart

• Output (Rod Side): 39 m³/hr
• Output (Piston Side): 26 m³/hr
• Delivery Pressure (Rod Side): 70 bar
• Delivery Pressure (Piston Side): 105 bar
• Strokes (Rod Side): 26
• Strokes (Piston Side): 17
• Engine Power: Deutz Diesel, 49 kW
• Delivery Cylinder Diameter - Stroke Length: 180 mm / 1000 mm
• Pressure Connection: 150 mm
• Dimensions (Length x Width x Height): 5677 x 1850 x 2180 mm
• Weight: 3,500 kg
• Trailer Type: F8

Description:

The PUTZ BSA 1404 HD eSmart is a powerful and compact diesel-powered concrete pump designed to handle challenging construction tasks. With dual output capabilities of 39 m³/hr on the rod side and 26 m³/hr on the piston side, it is engineered for efficiency and reliability. The Deutz diesel engine delivers 49 kW of power, providing robust performance even under heavy workloads. Its delivery cylinders (180 mm diameter with a 1000 mm stroke length) and delivery pressures of up to 105 bar ensure consistent concrete flow for applications such as high-rise buildings, bridges, and tunnels. Compact dimensions and a lightweight design make it easy to transport and maneuver, while the durable F8 trailer type adds to its versatility on-site. This pump is an excellent choice for contractors seeking high performance and reliability in concrete delivery.
