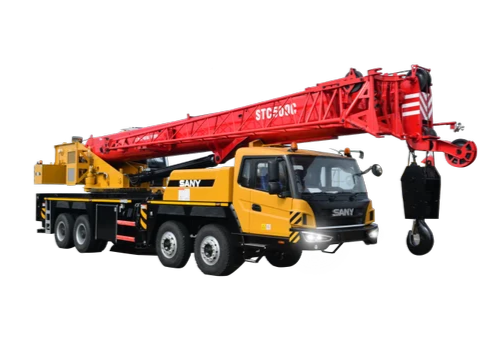

Sany STC500 50 Ton Truck Mounted Crane
The SANY STC500C is a powerful 50-ton capacity truck crane designed for exceptional haulage and efficient crane operations. It features a 5-section boom plus a fixed jib, offering versatility for a wide range of lifting tasks. Powered by a robust…
Specifications
- Maximum Travel Speed
- 48 km/h
- Working Temperature Range
- Up to 45°C
- Departure Angle
- 11°
- Wheel Formula
- 8x4
- Tail Slewing Radius
- 3.91 m
- Boom Sections
- 5
- Minimum Rated Lifting Radius
- 3 m
- Telescopic Boom Length
- 45.0 m
- Rated Capacity
- 50 tons
- Maximum Engine Torque
- 1400 rpm

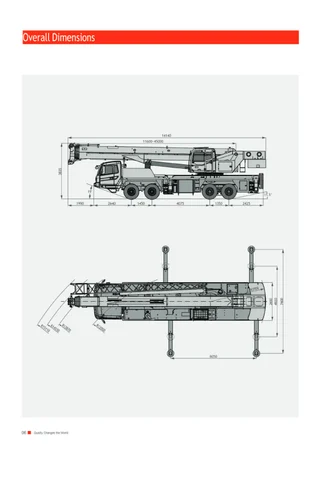

- Overall Width
- 2,650 mm
- Minimum Ground Clearance
- 250 mm
- Minimum Steering Radius of Boom Tip
- 14.8 m
- Number of Axles
- 4
- Boom Shape
- U-shape
- Gross Weight
- 41,040 kg
- Overall Length
- 14,140 mm
- Minimum Steering Radius
- 11.5 m
- Fixed Jib Length
- 16.0 m
- Maximum Engine Power
- 247/1900 kW/rpm
- Overall Height
- 3,835 mm
- Maximum Gradeability
- 47%
- Maximum Lifting Moment
- 2009 kNm
- Fuel Consumption (per 100 km)
- <40 L
- Approach Angle
- 18°
Equipment information and support, directly from Yoebar.
Description
- Maximum Travel Speed: 48 km/h
- Working Temperature Range: Up to 45°C
- Departure Angle: 11°
- Wheel Formula: 8x4
- Tail Slewing Radius: 3.91 m
- Boom Sections: 5
- Minimum Rated Lifting Radius: 3 m
- Telescopic Boom Length: 45.0 m
- Rated Capacity: 50 tons
- Maximum Engine Torque: 1400 rpm
- Overall Width: 2,650 mm
- Minimum Ground Clearance: 250 mm
- Minimum Steering Radius of Boom Tip: 14.8 m
- Number of Axles: 4
- Boom Shape: U-shape
- Gross Weight: 41,040 kg
- Overall Length: 14,140 mm
- Minimum Steering Radius: 11.5 m
- Fixed Jib Length: 16.0 m
- Maximum Engine Power: 247/1900 kW/rpm
- Overall Height: 3,835 mm
- Maximum Gradeability: 47%
- Maximum Lifting Moment: 2009 kNm
- Fuel Consumption (per 100 km): <40 L
- Approach Angle: 18°
The SANY STC500C is a powerful 50-ton capacity truck crane designed for exceptional haulage and efficient crane operations. It features a 5-section boom plus a fixed jib, offering versatility for a wide range of lifting tasks. Powered by a robust diesel engine with 247 kW output, it complies with CEV Stage IV emission norms, ensuring performance with environmental responsibility. With its advanced hydraulic system and fast operational capability, the STC500C is an ideal choice for demanding lifting projects.
