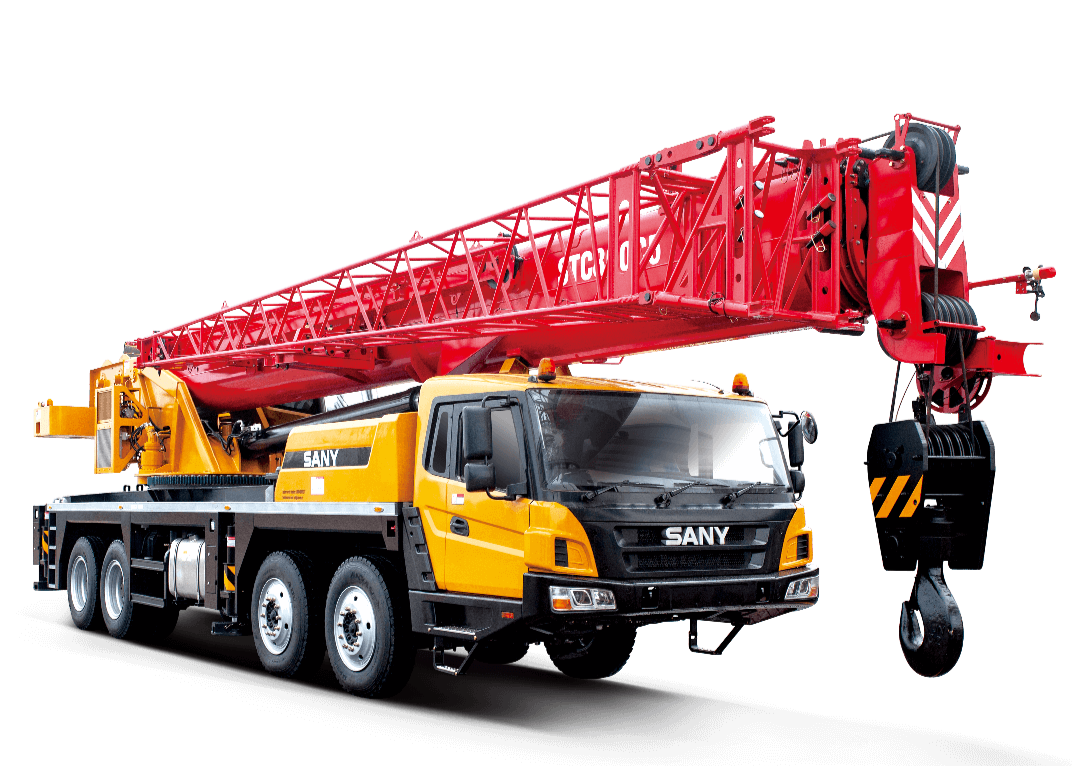

Sany STC800 80 Ton Truck Mounted Crane

• Gross Weight: 52,170 kg
• Overall Width: 2,800 mm
• Overall Height: 3,860 mm
• Maximum Travel Speed: 48 km/h
• Approach Angle: >17°
• Working Temperature Range: Up to 45°C
• Minimum Rated Lifting Radius: 3 m
• Boom Shape: U-shape
• Overall Length: 14,600 mm
• Minimum Steering Radius: 12 m
• Minimum Steering Radius of Boom Tip: 15.6 m
• Minimum Ground Clearance: 316 mm
• Maximum Gradeability: 41%
• Tail Slewing Radius: 4.025 m
• Boom Sections: 5
• Maximum Lifting Capacity: 80 t
• Maximum Engine Power: 1900 kW/rpm
• Wheel Formula: 8x4
• Departure Angle: >15°
• Maximum Engine Torque: 1700 Nm/rpm
• Fuel Consumption (per 100 km): <40 L

The SANY STC800C is one of India’s most popular truck cranes, known for its exceptional performance and reliability. This new-generation crane features an extra-long 47.5m boom and a lifting capacity of 80 tons, making it ideal for heavy-duty applications. Equipped with a 5-section boom plus a fixed jib, it offers versatility and precision. Powered by a robust diesel engine with 247 kW output and compliant with CEV Stage IV emission norms, the STC800C delivers unmatched power, efficiency, and environmental compliance for large-scale lifting projects.
